ГСД hydraulic distributorsГСД hydraulic distributors are intended for manual and automated control of hydraulic cylinders of mining machines and other types of hydraulic advancers inside highly gaseous and/or dusty coal mines.
Distributors are used in control systems for mechanized and automated roof support units, sinking and heading machines, cutter-loaders as well as a variety of other mechanized and automated control systems for assemblies and machinery.
Modifications:
- ГСД16-24Э, ГСД3-24Э — hydraulic distributor with electromagnetic drive and backup manual drive;
- ГСД20-01 — hydraulic in cartridge form.

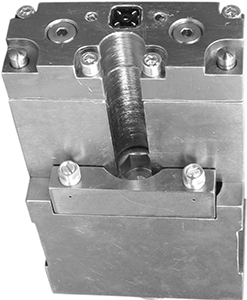

| ГСД16-24Э |

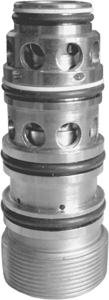

ГСД20-01 |

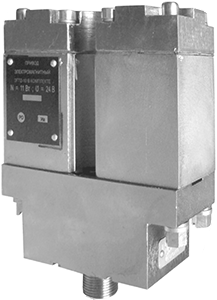

ГСД3-24Э |
 |
 |
 |
| Main parameters |
ГСД16-24Э |
ГСД3-24Э |
ГСД20-01 |
| Nominal pressure, MPa |
20 |
32 |
32 |
| Minimum pressure, MPa |
2 |
0
|
15 |
| Internal diameter, mm |
20 |
3 |
20 |
| Quantity of control lines |
5 |
5 |
|
| Hydraulic resistance with rated consumption, MPa |
0,8...1,0
|
|
0,8...1,0
|
| Rated consumption, l/min |
150 |
1 |
150
|
| Control mode |
electromagnetic / manual |
hydraulic |
| DC supply voltage for electromagnetic drive, V |
24±1,2
|
24±1,2 |
- |
| Drive engagement power under nominal voltage, V |
11 |
11,5 |
- |
| Button pressure (key pressure) forceof manual control, N |
20 |
30 |
- |
| Climatic class |
У |
У
|
У
|
| Installation conditions category according to GOST15150 |
5 |
5 |
5 |
| Operating temperature, °С |
+5...+35 |
+5...+35 |
+5...+35 |
| Relative humidity under +35°С, % |
98±2 |
98±2 |
98±2 |
Overall dimension, mm, not more than
|
|
|
|
| - length |
215 |
155
|
100
|
| - width |
60,5
|
50 |
М36х1,5
|
| - heigth |
117 |
125 |
- |
| Weigth, kg, not more than |
6,3 |
5,0 |
0,3 |
Developer: DONGIPROUGLEMASH Institute
|
|
